FRP moulded gratings Introduction



We offers wide range of Frp Grating, Open Molded and Pultruded Grating Panels for various applications

FRP Moulded Gratings are manufactured with the top of line moulding technology to provide high strength, performance and quality. These gratings can be manufactured in single sheets of size 1.2mtrs X 4 mtrs that is unparalleled in the industry. There are several variants available in terms of resin grades, surface textures and thickness for use across a range of industries. Custom cut sizes can also be made available based on requirement. With our expertise and skilled workforce we can suffice large requirements in short span of time.

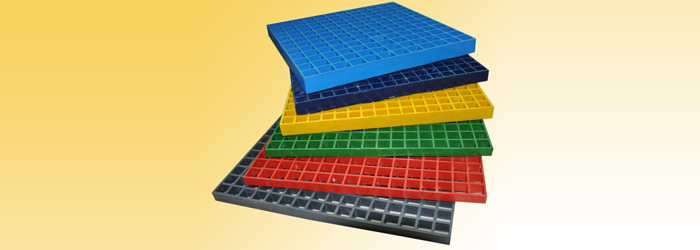

FRP Moulded Gratings
Everlast Composites frp moulded grating combines high chemical & corrosion resistance along with high durability and long life. These gratings have established a reputation for reliable performance even in the most demanding operating environments where traditional wood, concrete or metallic products deteriorate rapidly. Everlast FRP Mesh Gratings are available in three resin variants namely Isophthalic, Vinyl & Orthophthalic and three product Variants namely Concave surface, Grit Surface, Check Plate Cover.

FRP Moulded Gratings is a hand lay-up composite of resin and continuous glass fiber strand that is thoroughly wetted out and woven through an open mold.

This method provides Liberty pultrusions Molded Grating with Good Strength and High Corrosion Resistance. FRP moulded gratings is an excellent alternative to metal grating where rust, corrosion, or chemical attack are problems.

With proper resin selection, FRP moulded gratings is an economical option in a wide range of corrosive environments.



Advantages FRP moulded gratings
ADVANTAGES:
  • High resistance to corrosion and chemical resistivity
  • Easy to install and Maintain
  • High strength to weight ration
  • Long life span and low life cycle cost
  • Low installation cost
  • Electrically insulating
  • EMI / RFI transparency
  • Fire retardant grades available
  • Anti skid variants available
  • Available in range of colours
Comparison  FRP moulded gratings

PARAMETERS

HOT DIP GI

SS

EVERLAST FRP

LIFE SPAN

Moderate

High

High

STRENGTH TO WEIGHT RATIO

Low

Low

High

LIFE CYCLE COST

High

High

Low

CORROSION RESISTIVITY

Moderate

High

Very High

CHEMICAL RESISTIVITY

High

Moderate

High

ELECTRICAL CONDUCTIVITY

Nil

Nil

High

EMI / RFI TRANSPARENCY

Nil

Nil

High

INSTALLATION COST

Moderate

Moderate

Low

HANDLING

Difficult

Difficult

Very Easy

ANTI SKID

NA

NA

Available

COLOUR RANGE

NA

NA

Available

Application FRP moulded grating

Industrial Application

  • Floorings
  • Staircase
  • Walkways
  • Foot Bridges
  • Platforms
  • Trench Covers
  • Earth Pit Covers
  • Water treatment plants

Domestic Application

  • Channel drain covers
  • Elevated Car Park
  • Swimming pool overflow
  • Gardens
  • Fencing
Dimension Details  FRP moulded gratings

DRAWING

THICKNESS (H)
(mm)

MESH SIZE
(M)
(mm x mm)

RIB THICKNESS (R)
(min-max)mm

OPEN AREA
(%)

WT PER SQ. MTR.
(kg/Sqm)

SHEET SIZE
(mm x mm)

Mac HDD:Users:architkulkarni:Desktop:H-25.jpg

25

38 x 38

5-7

68%

11.9

1219 x 4006

30

5-7

14.1

38

5-7

19

Mac HDD:Users:architkulkarni:Desktop:H-50.jpg

50

50 x 50

5-8

78%

20.4

1220 x 4023




Accessories FRP moulded gratings

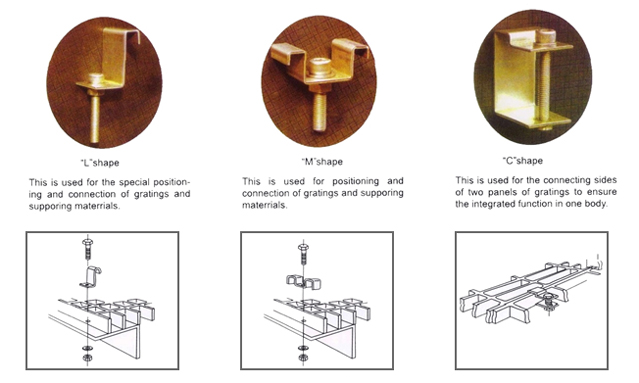

Fixing Clamps

Fixing Clamps are required during installation of gratings. Three types of clams are available based on location and type of joining required.


Product Range  FRP moulded gratings

PARAMETERS

OPTIONS AVAILABLE

THICKNESS

25mm, 30mm, 38mm, 50mm

RESIN VARIANTS

Isopthalic, Vinyl Ester, Bisphenol

SURFACE FINISH

Plain, Grit Surface (Anti Skid), Check Plate cover

MESH SIZE

38mm X 38mm (For Thickness 25mm, 30mm & 38mm),
50mm x 50mm (For Thickness 50mm only)




Colour Onlines  FRP moulded gratings

Standard colour EG102
